Hitch Manual Lowering

RXA0129473-UN-20NOV12

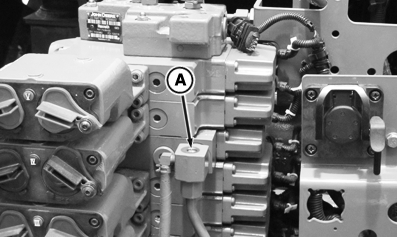

Manual Lowering Socket Head Cap Screw

A - Manual Lowering Socket Head Cap Screw

CAUTION: Avoid personal injury or death. Do not disconnect any hitch sensors, solenoids, or connectors from hitch control valve while engine is operating or key switch is ON. Unexpected hitch movement may occur. Stay clear of hitch area when starting engine or manually lowering hitch.

Hitch manual lowering is possible when hydraulic pressure and/or electrical power is not available.

Remove plug to access manual lowering socket head cap screw (A). Turn screw counterclockwise to lower hitch.

NOTE: Hitch cannot be raised manually. Both hydraulic and electrical power are required to raise hitch.

Turn socket head cap screw clockwise and install plug after hitch is lowered.
