Correct Center Link Position

RXA0129474-UN-20NOV12

Use Correct Hitch Category

RXA0129475-UN-20NOV12

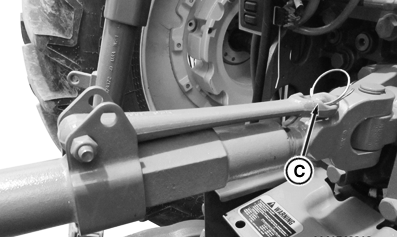

Recessed Retaining Mount Center Link

A - Lower Hole

B - Upper Hole

C - Recessed Retaining Mount

IMPORTANT: Excessive power can damage an implement, and large implement can damage tractor.

This tractor requires center link with recessed retaining mount (C) to prevent interference with SCV valve stack. Using center link without recessed retaining mounts may result in damage to SCV stack.

NOTE: Upper hole offers greater lift capacity. Lower hole offers greater ground clearance.

Attach center link to lower hole (A) for standard implements. Use upper hole (B) when implements require higher lift capacity (see implement Operator's Manual for recommendations).

Refer to lift capacities in Specifications section of this Operator’s Manual.
