Hydraulic Center Link (If Equipped)

RXA0113339-UN-27JAN11

RXA0086282-UN-26JAN06

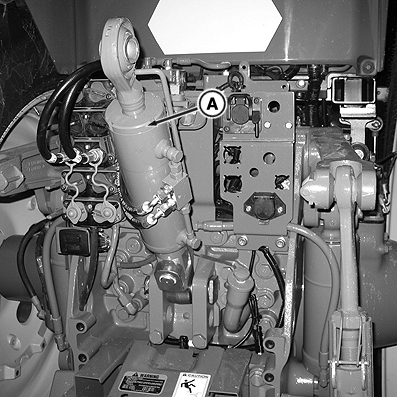

A - Hydraulic Center Link

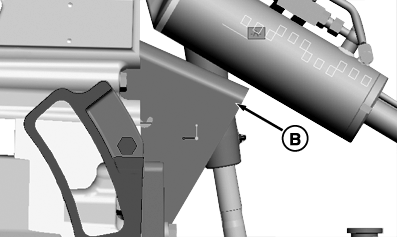

B - PTO Shield

NOTE: Do not use continuous flow or timed detents with hydraulic center link. Make sure SCV detent time is set to 0.

Length of hydraulic center link (A) can be adjusted from operator's seat using a selected control valve.

Place PTO shield (B) in down position when using hydraulic center link with lift links extended at maximum length.

IMPORTANT: Make sure locking mechanism is engaged and cord is free to move. Tight cord releases hook locking mechanism. Allow sufficient clearance in working zones. Do not subject center link to excessive loads.

Clean all mobile parts as required and apply commercial grease for smooth operation of parts. Interference of locking system is, in most cases, caused by dirt accumulation.
