Attach Implement to Quick Coupler

RXA0129477
RXA0129477-UN-20NOV12

RXA0137422
RXA0137422-UN-09DEC13

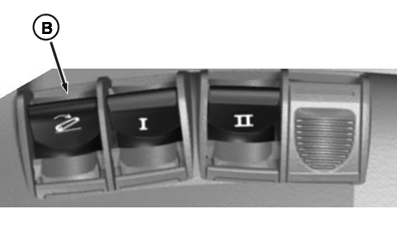

Rear Hitch Command Lever

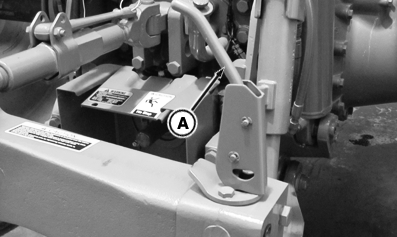

A - Coupler Latch Handle

B - Hitch Command Lever

CAUTION: To avoid bodily injury or machine damage:

Put transmission in PARK position and check the full range of hitch for interference, binding, or PTO separation whenever an implement is attached.

Make sure implement is correctly attached. Incorrect attachment can allow implement to be pulled over the tractor wheel and onto the operator station.

Do not stand between tractor and implement.

  1. Pull coupler latch handles (A) up.

  2. Lower hitch until quick coupler hooks are lower than implement hitch pins.

  3. Back up tractor to implement.

  4. Raise hitch enough to engage implement pins in hooks.

  5. Push coupler latch handles down to lock implement to quick coupler.

  6. Connect hydraulic hoses and electrical connections.

  7. IMPORTANT: Check for implement interference. Drawbar removal may be necessary.

    Slowly pull hitch command lever (B) to raise implement. Lower implement to ground and adjust upper height limit control if necessary.

IMPORTANT:

RXA0129478
RXA0129478-UN-20NOV12

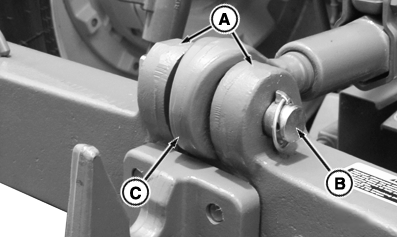

A - Upper Mast Opening Distance

B - Height Above Pin Distance

C - Yoke

If center link is attached directly to implement, measure upper mast opening (A) and height above pin (B). If upper mast opening is greater than 70 mm (2.8 in.) or height above pin is less than 14 mm (0.6 in.), use shims to limit/restrict swiveling of yoke (C).

TO84419,0000137-19-20140107
