Level Implement

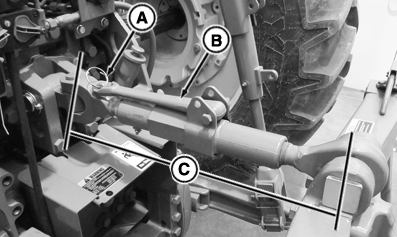

RXA0129479-UN-20NOV12

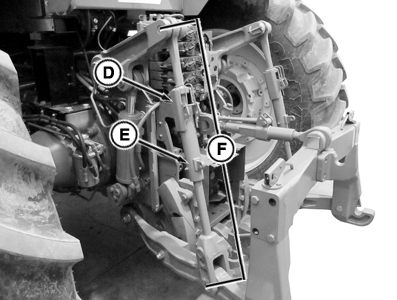

RXA0129480-UN-20NOV12

A - Locking Ring

B - Handle

C - Center Link Adjustment Length

D - Collar

E - Center Portion

F - Lift Link Adjustment Length

1. Adjust center link to level implement front-to-rear.

   • Remove locking ring (A).
   • Lift handle (B).
   • Rotate center portion of center link to desired length.



2. Secure handle (B) with locking ring (A).

3. Measure distance between centers of pins (C).

   Item	Measurement	Specification
   Center Link Length (C)
   Adjustment	Category 3 Length With Quick Coupler	627—790 mm (24.7—31.1 in.)

4. Adjust lift links to level implement side to side. Slide collar (D) upward. Rotate center portion (E) of lift link to desired length.

5. Measure between center of lift arm pin to draft link pin (F).

   Item	Measurement	Specification
   Lift Link Length (F)
   Adjustment	Group 47/48 Tires	1020—1178 mm (40—46.4 in.)

6. Lock out lateral float.

7. Secure collar (D) in position.
