Adjust Lateral Float

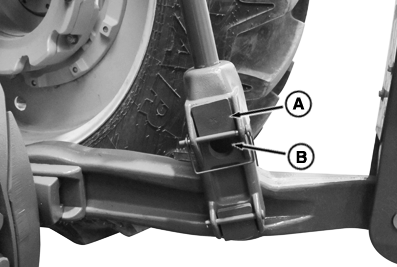

RXA0129481-UN-20NOV12

Lateral Float Pins

A - Upper Holes

B - Lower Holes

Put lateral float pins in upper holes (A) to hold implement rigidly.

Put lateral float pins in lower holes (B) to allow draft link to raise as implement follows ground surface.
