Detach Implement from Quick Coupler

RXA0129731-UN-20NOV12

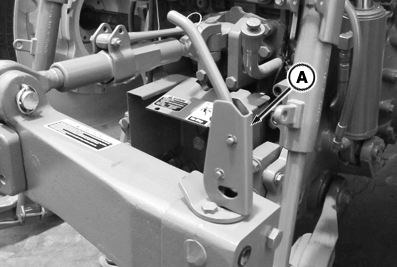

Coupler Latch Lever

A - Latch Lever

1. Raise both latch levers (A) with implement raised.

2. Disconnect hydraulic hoses and electrical connections.

3. Lower implement to ground and continue lowering quick coupler until hooks clear implement hitch pins.

4. Carefully drive tractor away from implement.
