Drawbar Load Limits Based on Drawbar Position and Length and PTO Type

RXA0127994-UN-12SEP12

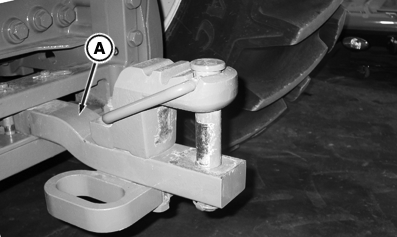

Category 3 Drawbar

RXA0128918-UN-09NOV12

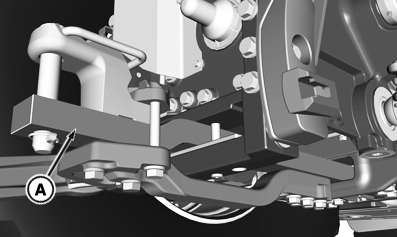

Category 3 Drawbar and High Vertical Load Drawbar Support

A - Drawbar

Drawbar Type	7210R	7230R	7250R	7270R	7290R	7310R
Category 3	Standard	Standard	Standard	Standard	Standard	Standard
Category 3 HD	Optional	Optional	Optional	Optional	Optional	Optional

RXA0084666-UN-02NOV05

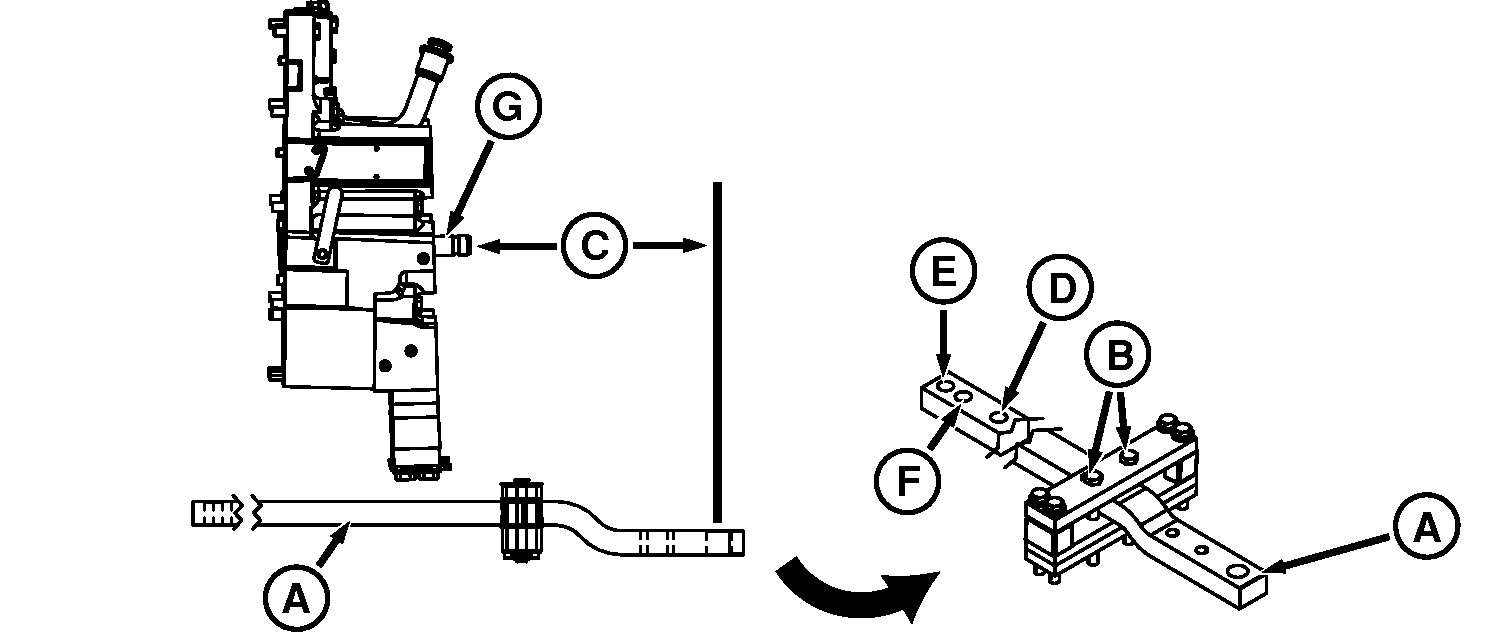

A - Drawbar

B - Cap Screws

C - Dimension

D - Short Position

E - Long Position

F - Medium Position

G - PTO Shaft

IMPORTANT: Certain heavy implements may place excessive strain on drawbar (A). Strain is greatly increased by speed and rough terrain. Do not exceed maximum static vertical load on drawbar for a given drawbar length/position, as indicated in table below.

Drawbar Load Limits
Drawbar Length/Position	Dimension (C) at 1000 RPM 1 3/4 in 20 splines	Dimension (C) at 1000 RPM 1 3/8 in 21 splines	Dimension (C) at 540 RPM 1 3/8 in 6 splines	Maximum Vertical Load — Category 3 Drawbar	Maximum Vertical Load — Category 3 HD Drawbar
1— Short/Rear Hole	348 mm (13.7 in.)1	360 mm (14.2 in.)1	360 mm (14.2 in.)	2766 kg (6100 lb.)	4536 kg (10000 lb.)
2—Medium/Middle Hole	397 mm (15.6 in.)1	409 mm (16.1 in.)	409 mm (16.1 in.)1	2131 kg (4700 lb.)	3493 kg (7700 lb.)
3—Long/Front Hole	500 mm (20 in.)	512 mm (20.2 in.)1	512 mm (20.2 in.)1	1837 kg (4050 lb.)	2994 kg (6600 lb.)
