Installing and Using Clevis Assembly Cat 3 Drawbar

RXA0128173
RXA0128173-UN-18OCT12

RXA0128175
RXA0128175-UN-12SEP12

RXA0128176
RXA0128176-UN-12SEP12

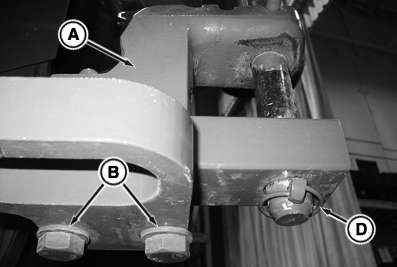

A - Clevis Assembly

B - Cap Screws

C - Pin with Handle

D - Lock Pin

IMPORTANT: Clevis may need to be removed depending on application.

NOTE: Clevis assembly (A) must be attached ONLY to top of drawbar.

  1. Install clevis assembly and tighten cap screws (B).

    ItemMeasurementSpecification
    Clevis Assembly Retaining Cap Screws
    Category 3Torque750 N·m (550 lb-ft)

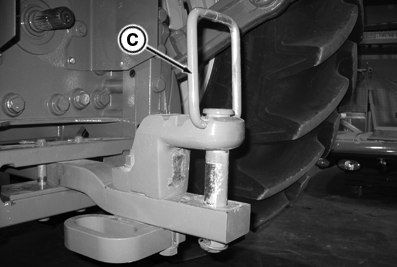

  2. Remove lock pin (D). Lift pin with handle (C) and position in notch of clevis assembly.
  3. Attach implement.

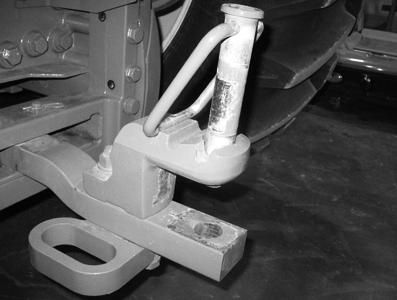

  4. Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members. Remove drawbar clevis if implement is equipped with clevis.
  5. Install locking pin (D).

TO84419,0000140-19-20130909
