Installing and Using Clevis Assembly (High Vertical Load Drawbar Support)

RXA0090741-UN-21SEP06

High Vertical Load Drawbar Support

RXA0128626-UN-12OCT12

RXA0128624-UN-12OCT12

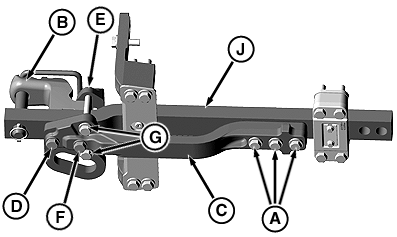

A - Cap Screws

B - Clevis Assembly

C - Brace

D - Cap Screw

E - Retainer

F - Cap Screw

G - Cap Screws

H - Pin with Handle

I - Locking Pin

J - Drawbar

IMPORTANT: The clevis may need to be removed depending on application.

Clevis assembly (B) must be attached ONLY to top of drawbar.

NOTE: Hold brace using a jack during installation.

1. Install brace (C) to drawbar (J) using three washers and cap screws (A).
2. Install brace (C) to drawbar and clevis assembly (B) using washer and cap screw (D).

   Item	Measurement	Specification
   Cap Screws (D)
   Category 3	Torque	750 N·m (555 lb.-ft.)

3. Install retainer (E) using one washer and cap screw (F) and two washers and cap screws (G). Tighten brace cap screws to specification.

   Item	Measurement	Specification
   Cap Screws (F)
   Category 3	Torque	750 N·m (555 lb-ft)

   Item	Measurement	Specification
   Cap Screws (A and G)
   Category 3	Torque	430 N·m (320 lb-ft)

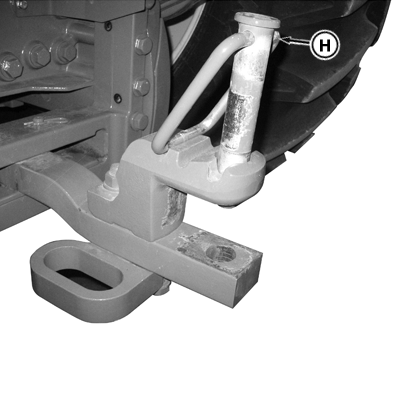

4. Remove locking pin (I). Lift pin with handle (H) and position in notch of clevis assembly.
5. Attach implement.
6. Insert pin only through drawbar, not through clevis assembly, if towed implement also has a clevis assembly. DO NOT insert pin through all four members.

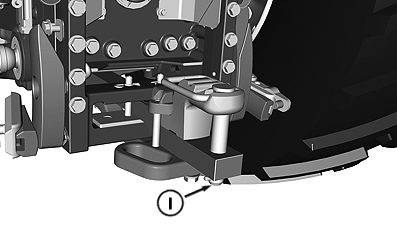

7. Install locking pin (I).
8. Remove clevis in reverse order of installation.
