Attaching Rear PTO Driven Implement

TS1644-UN-22AUG95

RXA0128912-UN-16OCT12

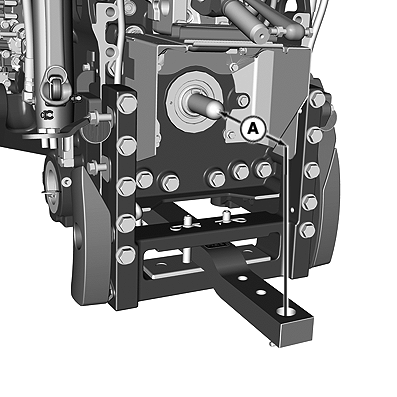

A - PTO Shaft to Pin Hole Distance

CAUTION: Entanglement in rotating drive line can cause serious injury or death. STOP THE ENGINE and be sure that telescoping drive line is stopped before making adjustments, connections, or before cleaning PTO driven equipment.

Keep PTO shield and drive line shields in place at all times. Make sure rotating shields turn freely. Wear close fitting clothing.

Lock drawbar in center, no sway position shown and remove clevis assembly.

PTO Shaft	Distance from PTO Shaft End to Hitch Pin Hole (A)
1000 rpm - 21 Splines1	400 mm (16 in.)
1000 rpm - 20 Splines2	508 mm (20 in.)

Attach implement to drawbar before connecting telescoping drive line. If implement will be connected to quick coupler, be sure that drawbar will not interfere.

Connect drive line to PTO shaft. Turn shaft slightly by hand to line up splines. Be sure yoke is in correct position and firmly locked.

Move PTO shield into position. (See Rear PTO Shield in this section of this Operator’s Manual.)
