Using Correct Engine Speed

RXA0128920
RXA0128920-UN-27NOV12

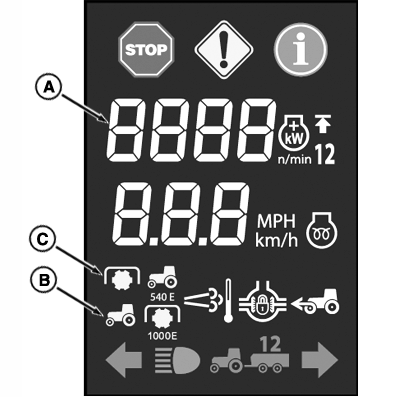

A - Tachometer

B - PTO Indicator—Rear

C - PTO Indicator—Front (If Equipped)

Correct engine speed is important. Run engine at 1950 engine rpm for both 540 and 1000 rpm PTO speed operation.

If equipped with 3-speed PTO, run engine at:

  • 1750 rpm—540E and 1000E rpm PTO
  • 1950 rpm—540 and 1000 rpm PTO

TO84419,0000145-19-20130311
