Operating Shiftable 3-Speed Rear PTO (If Equipped)

RXA0128916-UN-26OCT12

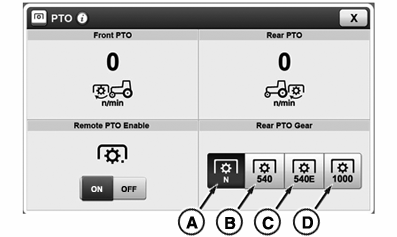

Menu → Tractor Settings Tab → PTO Icon

RXA0131639-UN-27MAR13

A - Neutral Position

B - 540 rpm Position

C - 540E rpm Position

D - 1000 rpm Position

IMPORTANT: Make sure selected PTO speed is correct for attached implement. Incorrect speed can result in serious damage to implement. Excessive engine rpm can also cause excessive PTO speeds resulting in implement damage.

Implements can be operated at 540 rpm only if power input never exceeds 60 kW (80 hp.). Operating PTO at lower speeds under heavy load could damage PTO.

Do not attempt to shift PTO speeds when PTO shaft is turning or PTO clutch is engaged. Damage to PTO shift collars can result.

1. Select Menu.
2. Select Tractor settings tab.
3. Select PTO Icon.

NOTE: If PTO does not engage, verify that a gear has been selected.

Select desired PTO speed in CommandCenter™. PTO speed may need to change depending on equipment.

Extend rear PTO control lever to engage PTO clutch. PTO indicator shows PTO engagement on display.

IMPORTANT: Make sure to select 540 rpm or 1000 rpm mode after changing PTO shaft. PTO does not disengage but speed must be limited if it does not match shaft size.

PTO Shaft	PTO Speed
35 mm (1-3/8 in.) 6 Spline	540 rpm/540E rpm
35 mm (1-3/8 in.) 21 Spline	1000 rpm/1000E rpm
45 mm (1-3/4 in.) 20 Spline	1000 rpm/1000E rpm

NOTE: Use proper engine speed when shifting into 540E or 1000E.
