Operating Shiftable 2-Speed Rear PTO (If Equipped)
IMPORTANT:

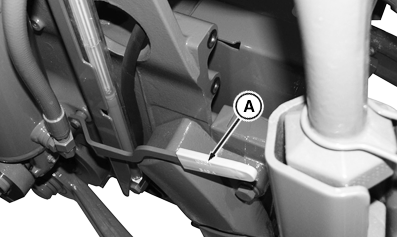

RXA0112530-UN-14DEC10
A - PTO Shift Lever
Make sure selected PTO speed is correct for implement attached. Incorrect speed can result in serious damage to implement. Excessive engine rpm can also cause excessive PTO speeds resulting in implement damage.IMPORTANT: Implements can be operated with 540 rpm 35 mm (1-3/8 in.) stub shaft only if power input never exceeds 60 kW (80 hp). Operating PTO at lower speeds under heavy load could damage PTO. 1000 rpm 35 mm (1-3/8 in.) stub shaft should be used for loads under 115 kW (154 hp). 1000 rpm 45 mm (1-3/4 in.) stub shaft should be used if heavier loads are expected.
IMPORTANT: Do not attempt to shift PTO speeds when PTO shaft is turning or PTO clutch is engaged. Damage to PTO shift collars may result.
Push down and forward on rear PTO switch to engage PTO clutch. PTO indicator will show PTO engagement on display.
Push PTO shift lever (A) down to shift to 540 rpm. Pull PTO shift lever up to shift to 1000 rpm.
IMPORTANT: Make sure to select either 540 rpm or 1000 rpm mode after changing PTO shaft. PTO will disengage if speed does not match shaft size.
|
PTO Shaft |
PTO Speed |
|---|---|
|
35 mm (1-3/8 in.) 6 Spline |
540 rpm/540E rpm |
|
35 mm (1-3/8 in.) 21 Spline |
1000 rpm/1000E rpm |
|
45 mm (1-3/4 in.) 20 Spline |
1000 rpm |
|
TO84419,000014C-19-20121127 |
