Ballasting Suggestions for Specific Types of Implements used with MFWD Tractors

Towed Draft Implements

These recommendations are offered as starting points when ballasting for operations with several common types of implements. Some deviations may be needed for specific circumstances.

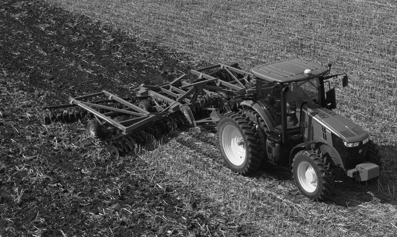

RXA0118620-UN-13JUL11

Without Front Suspension

	7210R	7230R	7250R	7270R	7290R	7310
Front Suitcase Weights	None	01	01	6	12	12
Rear Weights	None	1 pair 205 kg (452 lb.)	1 pair 205 kg (452 lb.)	1 pair 72 kg (159 lb.) 1 pair 625 kg (1378 lb.)	1 pair 72 kg (159 lb.) 1 pair 205 kg (452 lb.) 1 pair 625 kg (1378 lb.)	1 pair 72 kg (159 lb.) 1 pair 205 kg (452 lb.) 1 pair 625 kg (1378 lb.)

Towed Trailers, Slurry Tanks and Fertilizer Tanks

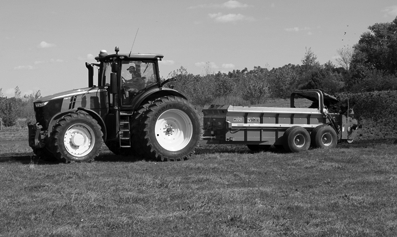

RXA0118616-UN-13JUL11

MFWD with or without front suspension

Front Ballast	20—24 Suitcase weights or 900 kg (1984 lb.) block
Rear Ballast	None required. If rear weights are already installed, it is not necessary to remove them.

NOTE: It may be practical to use less front weight with smaller trailers, but steering security and stability must be assured.

In all cases percentage on front axle must be increased if needed for steering security and stability.

Semi-Integral Implements

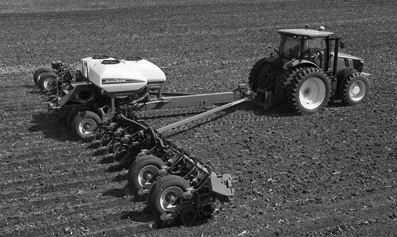

RXA0118622-UN-13JUL11

Front Ballast	20 Suitcase weights or 900 kg (1984 lb. block
Rear Ballast	None

Integral Implements

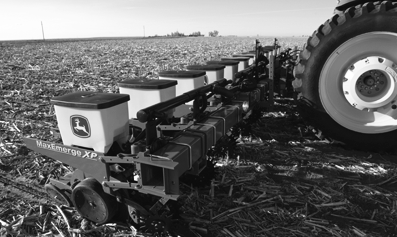

RXA0118618-UN-13JUL11

Front Ballast	20 Suitcase weights or 900 kg (1984 lb.) block
Rear Ballast	None
