Installing Quik-Tatch™ Weights

RXA0144438
RXA0144438-UN-08AUG14

RXA0112537
RXA0112537-UN-14DEC10

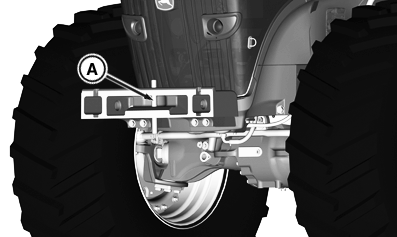

A - Center Pin

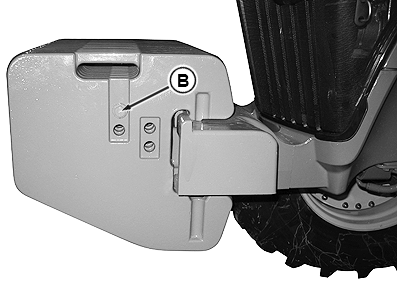

B - Retaining Bolts

Up to 24 Quik-Tatch™ weights can be installed on tractors.

When required, install Quik-Tatch™ weights, balanced on each side of center pin (A). The first two weights must be installed as a pair.

To hold six weights or fewer in position, insert retaining bolts (B) through holes and secure with a nut. Tighten to specifications.

ItemMeasurementSpecification
Retaining BoltsTorque170 N·m (125 lb-ft)

RXA0113871
RXA0113871-UN-09FEB11

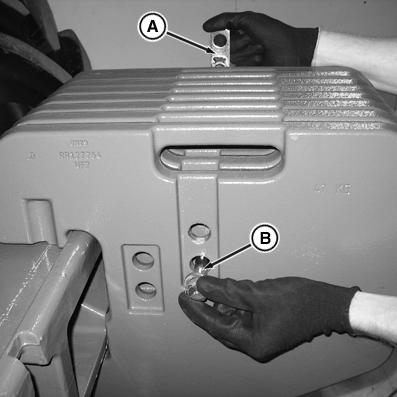

A - Retainers

B - Retaining Bolt

When eight or more weights are installed, insert retainers (A) between weights, one with threaded hole upward and the other with threaded hole downward. Tighten retaining bolts (B) to specifications.

ItemMeasurementSpecification
Retaining BoltsTorque170 N·m (125 lb-ft)
