Adding Rear Ballast For Front Loader

CAUTION:

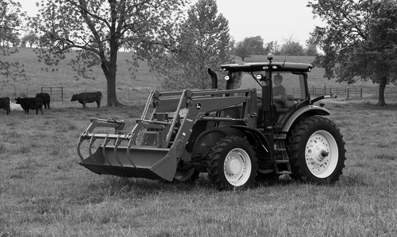

RXA0118624
RXA0118624-UN-13JUL11

To help prevent personal injury or death from tractor/loader rollover, add recommended amount of ballast to tractor. Amount of ballast listed is minimum required for normal loader operation. For some operations, additional ballast may be required to maximize stability. Select one of following ballasting options.

NOTE: More ballast may be required depending on the application.

Rear Ballast with H480 Loader1

Rear Wheel Configuration

Axle Ballast

Hitch Ballast2

Single Steel Wheels

2500 kg (5510 lbs)

None

Single Steel Wheels

750 kg (1655 lbs)

1000 kg (2205 lbs)

Single Cast Wheels

2310 kg (5095 lbs)

None

Single Cast Wheels

560 kg (1235 lbs)

1000 kg (2205 lbs)

Steel Wheels with Duals

1590 kg (3505 lbs)

None

Steel Wheels with Duals

None

885 kg (1950 lbs)

Cast Wheels with Duals

1400 kg (3085 lbs)

None

Cast Wheels with Duals

None

750 kg (1655 lbs)

1 Minimum required with rear tread set at 1800 mm (71 in.) or greater. If equipped, include fluid in rear tires in ballast total.
2 Ballast must be installed 1200 mm (47.25 in.) behind rear axle.
