Checking Toe-In (MFWD and TLS™ Plus Axles)

  1. RXA0110374
    RXA0110374-UN-13SEP10

    Make sure tires are in straight forward position by driving tractor in a straight line for at least 15.24 m (50 ft).


  2. Verify equal lengths of steering cylinder are showing on either side of tractor.

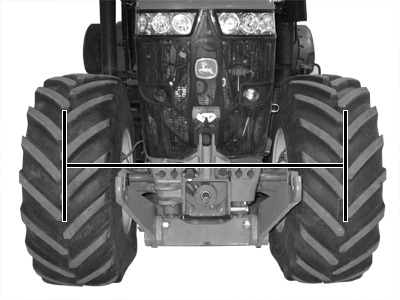

  3. Measure distance between centerline of tires at hub level in front of axle, using an outside bar of each tire or an inside bar of each tire. Mark point that is measured.

  4. Move tractor forward until front tires are rotated 180°.

  5. Repeat Step 3 at rear of tire, at same point.

  6. Determine difference between front and rear measurements. Difference may be in either direction (toe-in or toe-out), but should be adjusted to + or -3 mm (1/8 in.). Setting toe-in as close to 0 as possible will provide least amount of tire wear on hard surfaced roads.

TO84419,000016B-19-20130506
