Adjusting Toe-In (MFWD and TLS™ Plus Axles)

1.

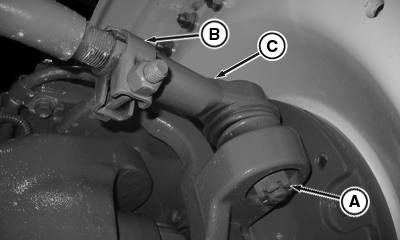

   RXA0113529-UN-11FEB11

   A - Nut and Pin

   B - Clamp Nut

   C - Tie Rod End

   Check to make sure axle is centered.

---




2. Loosen clamp nut (B) on right or left side of tie rod.

3. Remove pin and nut (A).

4. Remove tie rod end (C) from wheel hub housing.

5. NOTE: Setting toe-in to + or -3 mm (1/8 in.) will provide least amount of tire wear on hard surfaced roads.

   Rotate tie rod end (C) as necessary to obtain toe-in or toe-out less than specifications. Each turn equals approximately 3 mm (1/8 in.) change.

   Item	Measurement	Specification
   Toe-in or Toe-out	Distance	+ or -3 mm (1/8 in.)

6. Tighten each nut to specifications.

   Item	Measurement	Specification
   Tie-Rod Clamp Nut	Torque	162 N·m (120 lb-ft)

   NOTE: Clamp cap screw threads should point to front of tractor.
