710 mm (28 in.) Extra Wide Deluxe Pivoting Front Fenders

1. NOTE: Position fender assembly in middle position for initial setup.

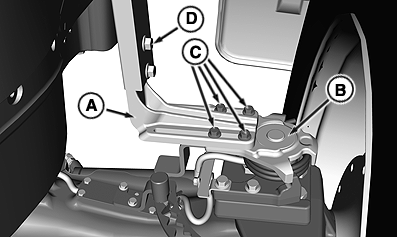

   RXA0135734-UN-26SEP13

   A - Fender Assembly

   B - Pivot Assembly

   C - M10 x 30 mm Cap Screws

   D - M12 x 35 mm Cap Screws

   Install fender assembly (A) to pivot assembly (B) using four M10 x 30 mm cap screws (C).

---




2. Tighten cap screws to pivot assembly (B) to specifications.

   Item	Measurement	Specification
   Fender Assembly to Pivot Assembly	Torque	70 N·m (52 lb.-ft.)

3. Fender height can be adjusted by repositioning M12 x 35 mm cap screws (D). Tighten fender support bracket cap screws to specifications.

   Item	Measurement	Specification
   Fender Support Bracket to Fender Assembly	Torque	125 N·m (92 lb.-ft.)
