Final Fender Positioning

1. NOTE: Height can be positioned per customer preference.

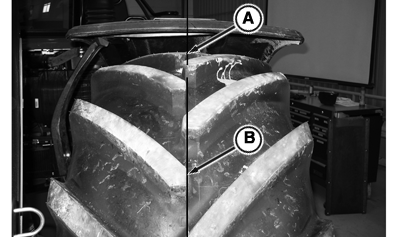

   RXA0127363-UN-31JUL12

   A - Fender Center Line

   B - Tire Center Line

   Position fender so that center of fender (A) is in line with tire center (B) as shown.

---




2. Torque all cap screws.

3. Verify fender clearance by turning steering wheel to left stop and right stop.
