MFWD Fender Settings—Deluxe Pivoting Fenders

Bracket Positions

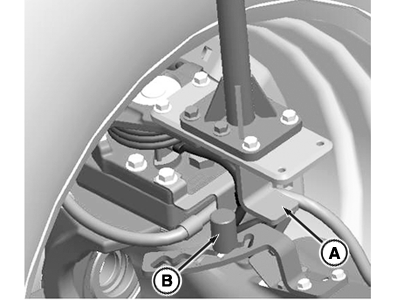

The bracket (A) that contacts fender stop (B) can be replaced as it wears.

RXA0132028-UN-12APR13

A - Bracket

B - Stop

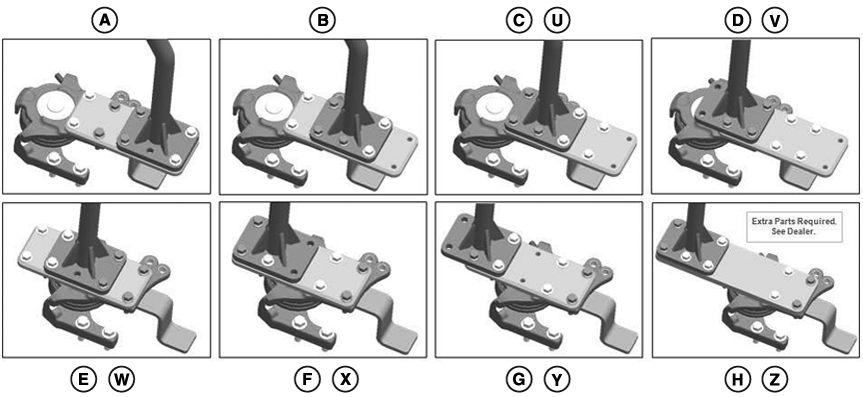

To prevent damage to fender by contact with wheel or hood, place fender bracket and fender stopper in recommended positions.

RXA0132025-UN-12APR13

NOTE: The following positions are only recommendations. Depending on tire size, fender size, and steering stop position, fenders may need additional adjustment from recommended positions listed above.

Stopper Positions

NOTE: The following positions are only recommendations. Depending on tire size, fender size, and steering stop position, fenders may need additional adjustment from recommended positions listed below.

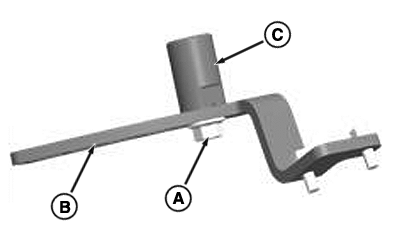

RXA0132027-UN-12APR13

A - Cap Screw

B - Bracket

C - Stopper

Stopper (C) can be replaced as it wears.

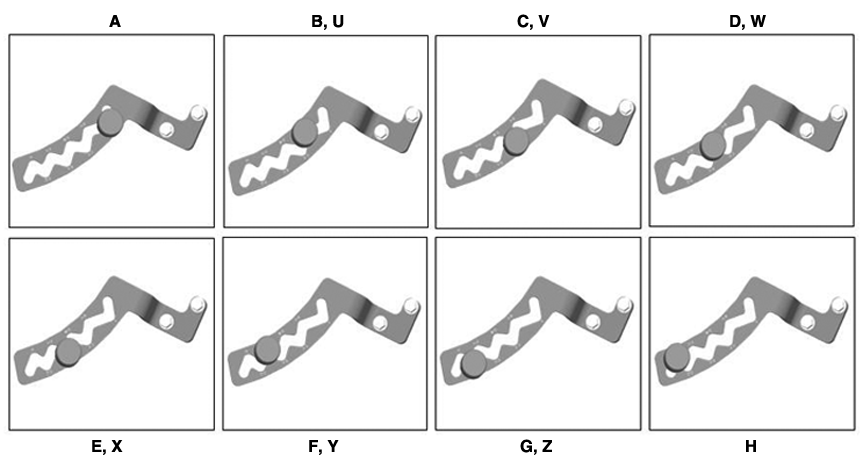

Some adjustment may be necessary if fender contacts hood on tight turns. Move stopper (C) towards axle, from G position to A position, to move fender further away from hood.

Some adjustment may be necessary if tire contacts fender on tight turns. Move stopper (C) away from axle, from A position to G position, to move fender further away from tire.

RXA0132026-UN-12APR13
