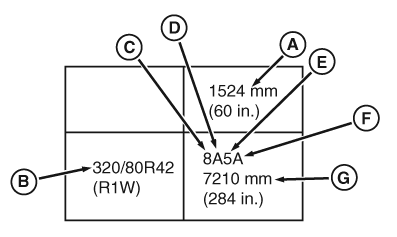

Front Tire, Fender, and Steering Stop Settings Table Explanation

RXA0134419-UN-05AUG13

A - Tread Spacing

B - Tire Size

C - Eight-Position Rim

D - Tread Setting

E - Steering Stop

F - Bracket and Stopper Settings

G - Turning Radius

NOTE: This explains tables on next several pages.

First row across top of page lists tread spacing (A) in millimeters and inches.

Column one lists tire size (B).

First number (C) in column two identifies that an eight-position rim is used. First letter (D) indicates which diagram to follow from Eight-Position MFWD Wheel Settings. Next number (E) indicates what steering stop position to use from Setting Steering Stop Positions located in this section. Next letter (F) is bracket position and stopper position setting, which are taken from MFWD Fender Settings—Deluxe Pivoting Fenders located in this section of this Operator’s Manual. Last two entries indicate turning radius (G) in millimeters and inches.
