Installing Rear Steel Wheel to Hub

RXA0084448-UN-05OCT05

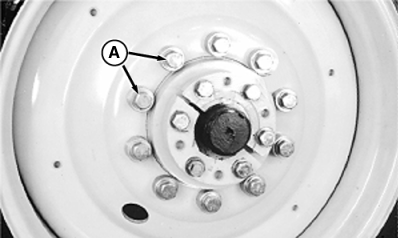

Mini Cast Drive Hub With Pinion

A - Wheel to Hub Bolts

1. CAUTION: Avoid the possibility of personal injury. Failure to follow torquing sequence and procedure will result in damage to equipment and may result in personal injury. Wheel bolts are critical and require repeated torquing.

   NOTE: Check hole sizes on duals, wheel rim may have one tight fit hole smaller than other holes. One slot fit hole is 180° from tight fit hole, for improved wheel centering.

   Install and hand tighten bolts (A).

2. Tighten all bolts until bolts maintain torque according to specifications.

   Item	Measurement	Specification
   Wheel-to-Hub Bolts	Torque	600 N·m (445 lb-ft)

3. Drive tractor 100 meters (100 yd) and retighten bolts.

4. Tighten again at 3 HOURS, 10 HOURS, and DAILY for first week of operation and every 250 hours.

   IMPORTANT: Carefully follow procedure for tightening wheel bolts. Failure to do so could result in equipment damage.
