Towing Tractor

CAUTION:

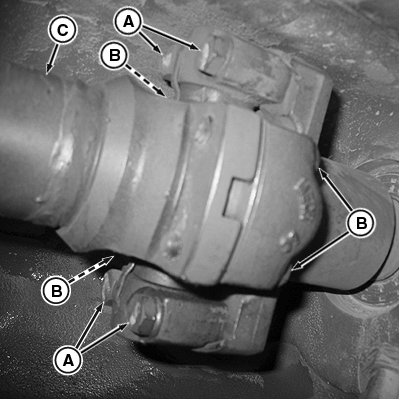

RXA0111188-UN-14FEB11

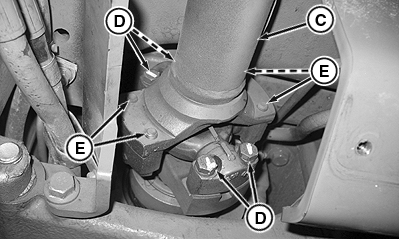

RXA0111186-UN-14FEB11

A - Front-Facing Rear U-Joint Cap Screws

B - Rear-Facing Rear U-Joint Cap Screws

C - MFWD Drive Shaft

D - Rear-Facing Front U-Joint Cap Screws

E - Front-Facing Front U-Joint Cap Screws

IMPORTANT: Avoid transmission and power train component damage:

• NEVER attempt to start tractor by towing. Engine will not start.
• If possible, operate engine above 1250 rpm to provide lubrication, power steering, and power brakes. Have an operator steer and brake tractor.
• Do not tow tractor faster than 8 km/h (5 mph). Do not exceed 3 km/h (2 mph) for first 10 minutes in below freezing temperatures.
• Check transmission/hydraulic oil level. Add 4 L (1 gal.) for each 152 mm (6 in.) front wheels are raised off the ground. Do not raise wheels more than 305 mm (12 in.). Drain excess oil after transporting.

1. If equipped with MFWD, disconnect drive shaft if towing tractor with front wheels on a carrier:

   1. Remove shields.

   2. Remove both sets of cap screws (A, B) on rear MFWD drive shaft U-joint.

   3. Remove both sets of cap screws (D, E) on front MFWD drive shaft U-joint.

   4. Slide MFWD drive shaft (C) forward and out from tractor.

2. Tap brake pedals to make sure differential lock is not engaged.

3. Move reverser to:

   • CommandQuad™ and e23™ Transmissions: Make sure reverser is in NEUTRAL position.
   • IVT™/AutoPowr™ Transmission:
     • Engine running: Move reverser to NEUTRAL position.
     • Engine off: Keep reverser in PARK position.



4. Release park brake:

   • CommandQuad™ and e23™ 40 km/h transmission equipped tractors with ACS™ and all CommandQuad™, e23™, and all IVT™/AutoPowr™ 50 km/h transmission equipped tractors: See Procedure 1 in Releasing Park Brake Electrically in this section of this Operator’s Manual.
   • CommandQuad™ and e23™ 40 km/h transmission equipped tractors without ACS™: See Procedure 2 in Releasing Park Brake Electrically in this section.
