Filling Fuel Tank

TS202-UN-23AUG88

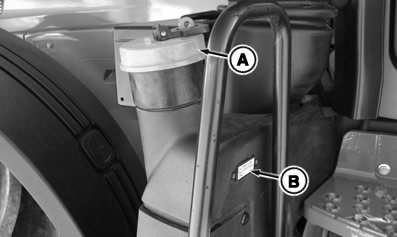

RXA0135482-UN-12SEP13

A - Fuel Tank Cap

B - Ultra Low Sulfur Fuel Only Decal

CAUTION: Handle fuel with care: It is highly flammable. Do not refuel the machine while smoking or when near open flame or sparks.

Always stop engine before refueling machine. Fill fuel tank outdoors.

Prevent fires by keeping machine clean of accumulated trash, grease, and debris. Always clean up spilled fuel.

IMPORTANT: To prevent damage to tractor fuel injection system and other components, never put Diesel Exhaust Fluid (DEF) into fuel tank or fuel system.

Watch fuel level. Low fuel indicator on corner post fuel display will flash when approximately 39 L (10 gal.) of fuel remains. Regardless of fuel level, fill fuel tank at end of each day to prevent condensation in tank. Condensation can be produced when trapped moist air cools. Use fuel as specified for machine’s engine.

IMPORTANT: To confirm which engine your tractor is equipped with, see Record Engine Serial Number in Identification Numbers section of this Operator's Manual.

NOTE: If engine requires Diesel Exhaust Fluid (DEF) to operate, it is suggested that DEF tank is refilled each time machine is refueled to assure that sufficient DEF is available. See Filling DEF Tank in this section of this Operator’s Manual.

For machines with Interim Tier 4/Stage IIIB and Final Tier 4/Stage IV engines, use only ultra low sulfur fuel as specified on decal (B) in this section of this Operator’s Manual. For other machines, see Diesel Fuel in this section of this Operator’s Manual.

To open fuel tank cap (A), lift latch lever and turn 90° counterclockwise, then lift fuel cap from filler neck. Replace and securely latch cap after fueling is complete.
