Service Implement Power Relay Module

RXA0110047-UN-26AUG10

Remove Rear Cover

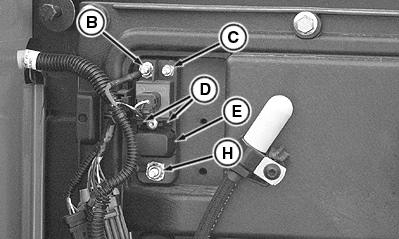

RXA0109345-UN-16AUG10

Implement Power Relay Module

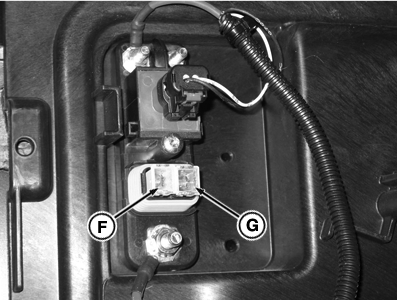

RXA0100356-UN-03FEB09

Implement Power Relay Module Fuses

A - Cap Screws

B - Switched Power Lug

C - Unswitched Power Lug

D - Fuse Cover Tabs

E - Fuse Cover

F - 60 Amp Fuse

G - 30 Amp Fuse

H - Battery Power Input Stud

Remove four cap screws (A) and cab rear cover. Implement Power Relay Module is located in upper left corner of rear cab panel. Module routes power to Implement Bus Breakaway Connector.

Power comes into module from battery at battery power input stud (H).

Switched power lug (B) is protected by a 60 Amp fuse (F). Unswitched power lug (C) is protected by a 30 Amp fuse (G).

To Change Fuses

1. Press down on fuse cover tabs (D) and remove fuse cover (E).

2. To remove, pull fuse straight rearward.

3. Replace with new fuse.

4. Reinstall cover and slide tabs over cover edge to secure.
