Replace Front HID/LED Light Assembly

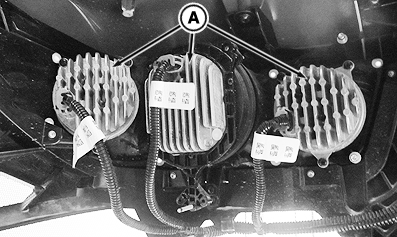

  1. RXA0134245
    RXA0134245-UN-31JUL13

    Right-Hand Side Shown

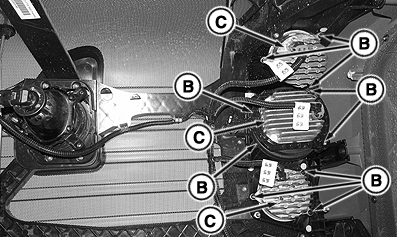

    RXA0134248
    RXA0134248-UN-31JUL13

    Right-Hand Side Shown

    A - Harness Connector

    B - Screws

    C - Light Assembly

    Raise hood.


  2. Disconnect harness connector (A).

  3. Remove screws (B) and light assembly (C).

  4. Replace light assembly.

  5. Install new light assembly in reverse order of removal.

  6. Close and secure hood.

TO84419,000022C-19-20130906
