Adjust Front Grille Lights

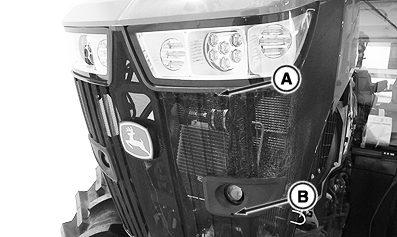

RXA0134244-UN-31JUL13

Right Lights Shown

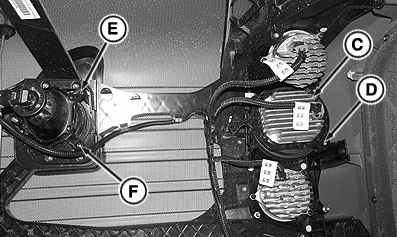

RXA0134249-UN-31JUL13

Right Lights Shown

A - High Beam Adjustment Screw

B - Low Beam Adjustment Screw

C - High Beam Tilt Up And In Adjustment Screw

D - High Beam Tilt Up And Out Adjustment Screw

E - Low Beam Tilt Up And In Adjustment Screw

F - Low Beam Tilt Up And Out Adjustment Screw

Adjust front grill lights, as needed. Perform adjustments on each side of tractor.

For High Beam Headlights:

To lower high beam, turn high beam adjustment screw (A) counterclockwise.

To raise and tilt in high beam, turn high beam adjustment screw (C) counterclockwise.

To raise and tilt out high beam, turn high beam adjustment screw (D) counterclockwise.

For Inner Hood Work Light:

To lower low beam headlight, turn low beam adjustment screw (B) counterclockwise.

To raise and tilt in low beam headlight, turn low beam adjustment screw (E) counterclockwise.

To raise and tilt out low beam headlight, turn low beam adjustment screw (F) counterclockwise.
