Replace Brake or Turn Signal Light Bulb

RXA0109540-UN-18AUG10

RXA0109542-UN-18AUG10

RXA0109544-UN-08OCT10

RXA0109551-UN-18AUG10

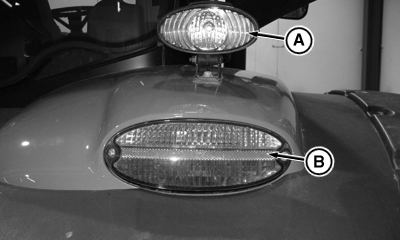

A - HID Light

B - Tail Light Lens

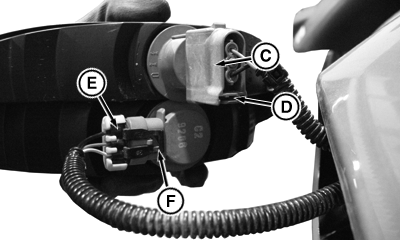

C - Turn Signal Wiring Harness

D - Turn Signal Tab

E - Brake Light Wiring Harness

F - Brake Light Tab

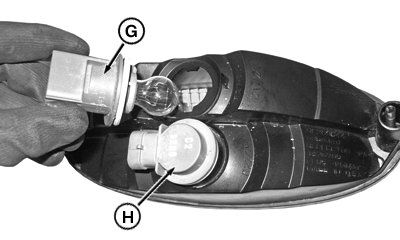

G - Turn Signal Bulb Fixture

H - Brake Light Bulb Fixture

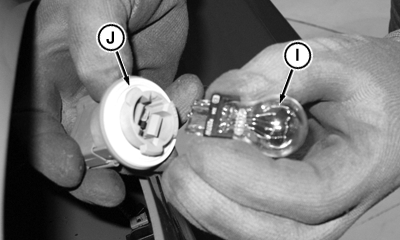

I - Bulb

J - Fixture

1. Remove screws and tail light lens (B).

2. Press turn signal tab (D) and remove turn signal wiring harness (C).

3. Lift brake light tab (F) and remove brake light wiring harness (E).

4. Rotate turn signal (H) or brake light bulb fixture (G) 1/4 turn counterclockwise and remove from housing.

5. Turn brake light bulb fixture (H) 1/4 turn counterclockwise and remove.

6. Pull bulb (I) out of fixture (J).

7. Install new bulb (I) in fixture (J) and turn fixture (J) 1/4 turn clockwise to install.

8. Reinstall wiring harnesses (C and E).

9. Reinstall lens and screws.
