Replace Extremity Warning Light Bulb (If Equipped)

  1. RXA0108609
    RXA0108609-UN-29JUL10

    RXA0108611
    RXA0108611-UN-29JUL10

    RXA0108613
    RXA0108613-UN-29JUL10

    A - Screws

    B - Shield

    C - Lens Cover

    D - Light Bulb

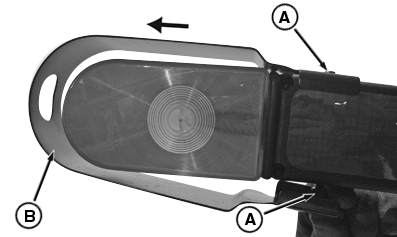

    Loosen screws (A).


  2. Slide shield (B) away from lens cover to remove.

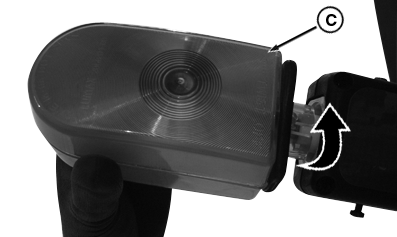

  3. Turn lens cover (C) counterclockwise to access light bulb.

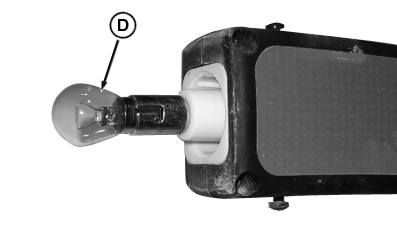

  4. Install new bulb (D) in reverse order of removal.

TO84419,0000233-19-20130501
