Identify Zinc-Flake Coated Fasteners

RXA0073812

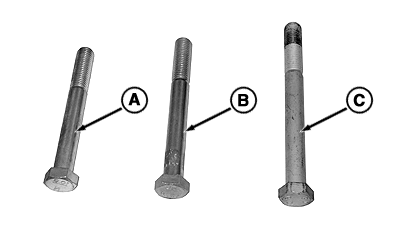

RXA0073812-UN-03MAR04

A - Standard Cap Screws

B - Zinc-Plated Cap Screw

C - Zinc-Flake Cap Screw (20 mm and larger)

Standard cap screws (A) are of a reflective silver color.

Zinc plated cap screws (B) are of a reflective gold color.

Zinc-flake coated cap screws (C) are of a dull silver color.

NOTE: Zinc-flake coated fasteners are tightened to lubricated specifications, unless otherwise noted. (See Torque Value Charts in this group.)

TO84419,0000276-19-20121127
