Replace SCV Pilot Filter (If Equipped)

RXA0152693
RXA0152693-UN-11JUL16

RXA0152694
RXA0152694-UN-11JUL16

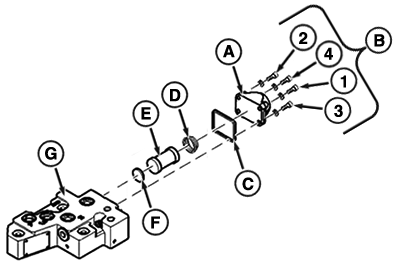

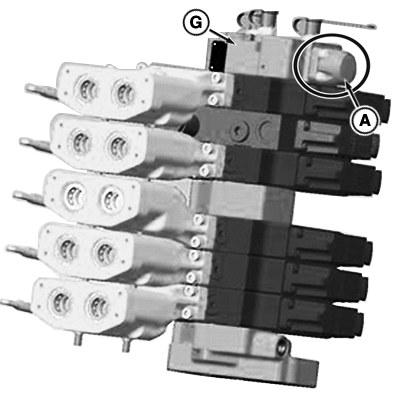

A - SCV Pilot Filter Cover

B - Cap Screws

C - Gasket

D - Spring

E - SCV Pilot Filter

F - O-Ring

G - SCV Pilot Filter Housing

  1. Remove cap screws (B).

  2. Remove SCV pilot filter cover (A) from SCV pilot filter housing (G).

  3. Remove old spring (D), SCV pilot filter (E), and O-ring (F).

  4. Install new O-ring, SCV pilot filter, and spring.

  5. Replace gasket (C) and SCV pilot filter cover.

  6. Install cap screws and tighten to specification in sequence (1, 4, 3, 2).

    ItemMeasurementSpecification
    Cap ScrewsTorque6 N·m (53 lb·in)

DB71512,000004A-19-20160712
