Tie Down on Transport Carrier

Tie Down for Tractors with Single Reduction Axles

IMPORTANT: Transport Regulations vary - contact your local transportation officials for your local transportation requirements.

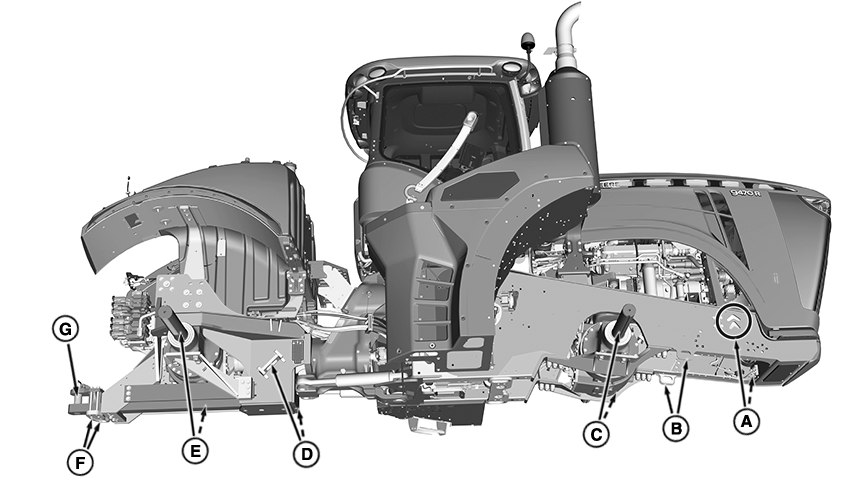

RXA0153762-UN-01SEP16

Tie Down Locations Single Reduction Axle

A - Front Frame T-Hook Slots

B - Front Frame Tie Down Loops

C - Front Axles

D - Rear Frame Tie Down Loops

E - Rear Axles

F - Drawbar Support

G - Drawbar Pin

Attach tie down devices to front frame t-hook slots (A), front frame tie down loops (B), front axles (C), rear frame tie down loops (D), rear axles (E), drawbar support (F) and drawbar pin (G) as required per local regulations.

CAUTION: To avoid accident or injury, use tie down devices to secure tractor to carrier. Drive carefully.

IMPORTANT: A disabled tractor should be hauled on a flat-bed carrier.

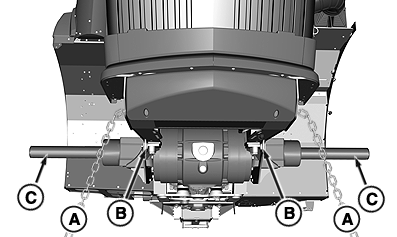

RXA0143571-UN-16JUL14

Front View Single Reduction Axle

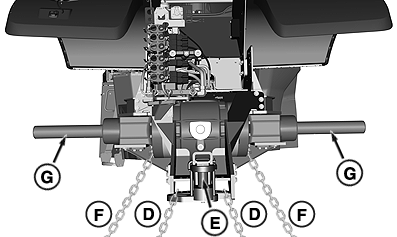

RXA0143572-UN-11JUL14

Drawbar Support and Drawbar Pin Area

A - Front Frame T-Hook Slots

B - Front Frame Tie Down Loops

C - Front Axles

D - Drawbar Support

E - Drawbar Pin

F - Rear Frame Tie Down Loops

G - Rear Axles

Tie Down for Tractors with Double Reduction Axles

IMPORTANT: Transport Regulations vary - contact your local transportation officials for your local transportation requirements.

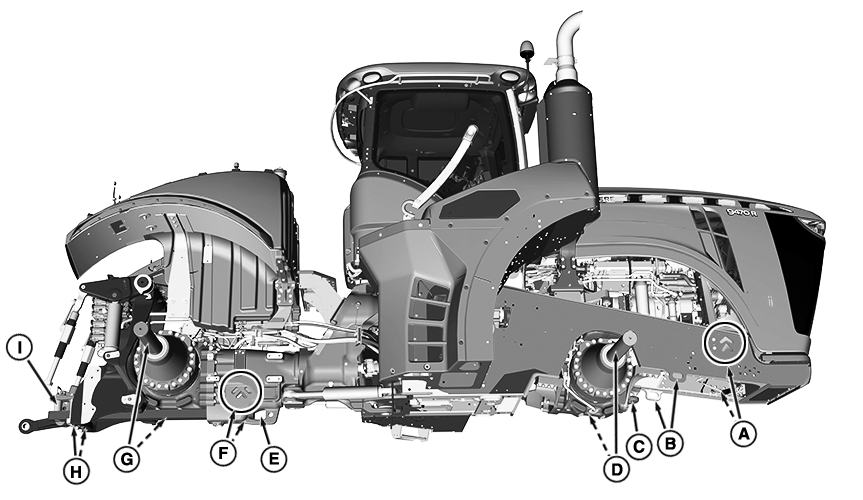

RXA0153763-UN-01SEP16

Tie Down Locations Double Reduction Axle

A - Front Frame T-Hook Slots

B - Front Frame Tie Down Loops

C - Front Axle Tie Down Loop (Also on Suspended Axles)

D - Front Axles

E - Rear Frame Tie Down Loop

F - Rear Frame T-Hook Slots

G - Rear Axles

H - Drawbar Support

I - Drawbar Pin

CAUTION: To avoid accident or injury, use tie down devices to secure tractor to carrier. Drive carefully.

IMPORTANT: A disabled tractor should be hauled on a flat-bed carrier.

Attach tie down devices to front frame t-hook slots (A), front frame tie down loops (B), front axle tie down loop (C), front axles (D), rear frame tie down loop (E), rear frame t-hook slots (F), rear axles (G), drawbar support (H) and drawbar pin (I) as required per local regulations.

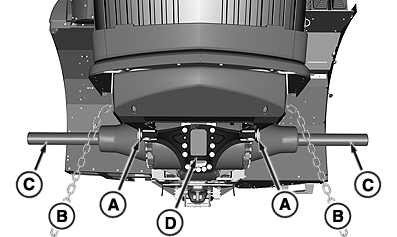

RXA0143569-UN-10JUL14

Front View Double Reduction Axle

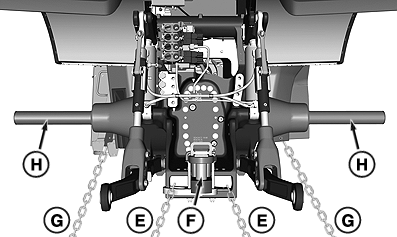

RXA0143570-UN-11JUL14

Drawbar Support and Drawbar Pin Area

A - Front Frame Tie Down Loops

B - Front Frame T-Hook Slots

C - Front Axles

D - Front Axle Tie Down Loop (Also on Suspended Axles)

E - Drawbar Support

F - Drawbar Pin

G - Rear Frame T-Hook Slots

H - Rear Axles
