Cummins® — CARB Non-road Emissions Control Warranty Statement

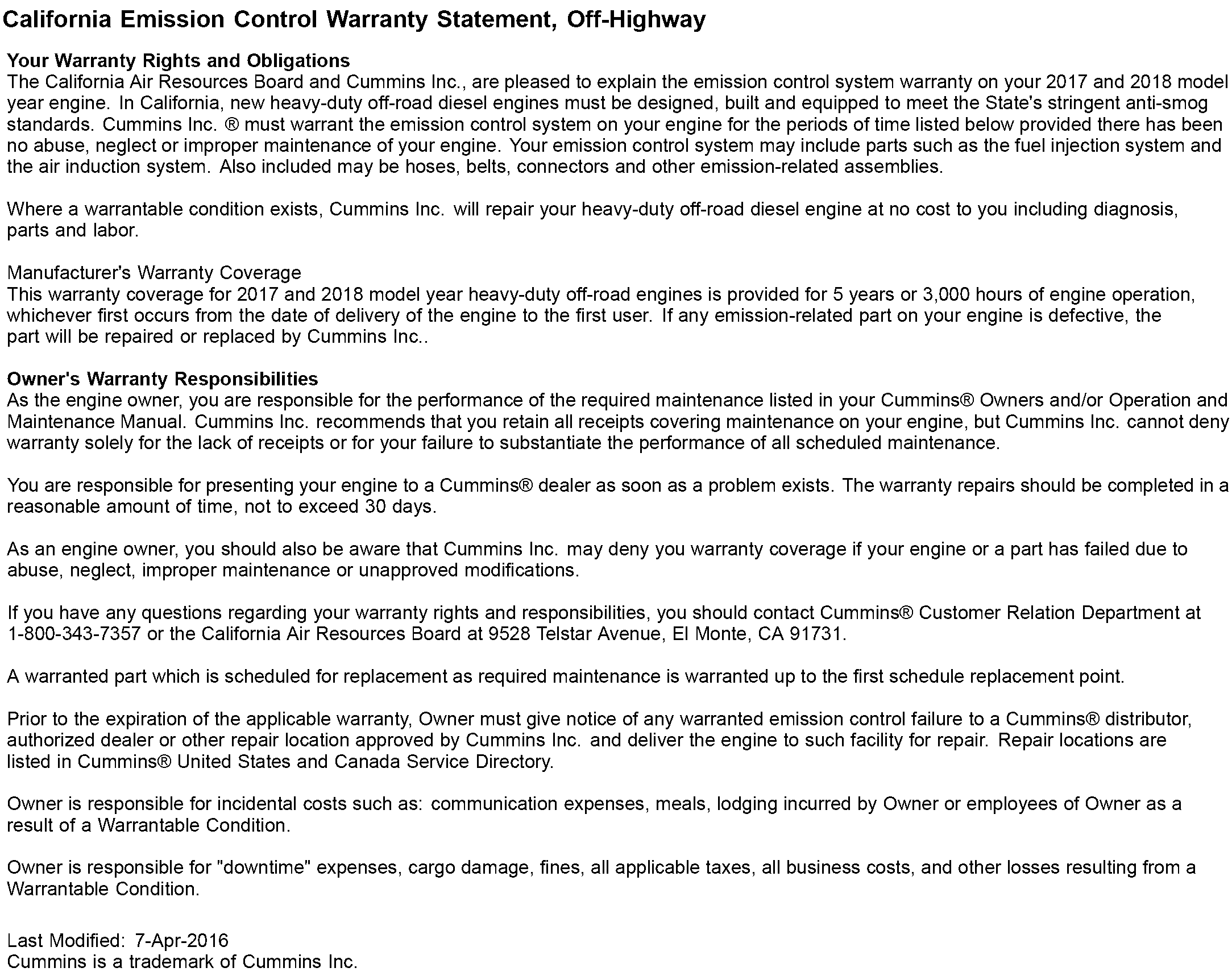

California Emission Control Warranty Statement, Off-Highway

Your Warranty Rights and Obligations The California Air Resources Board and Cummins Inc., are pleased to explain the emission control system warranty on your 2017 and 2018 model year engine. In California, new heavy-duty off-road diesel engines must be designed, built and equipped to meet the State's stringent anti-smog standards. Cummins Inc. ® must warrant the emission control system on your engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your engine. Your emission control system may include parts such as the fuel injection system and the air induction system. Also included may be hoses, belts, connectors and other emission-related assemblies. Where a warrantable condition exists, Cummins Inc. will repair your heavy-duty off-road diesel engine at no cost to you including diagnosis, parts and labor. Manufacturer's Warranty Coverage This warranty coverage for 2017 and 2018 model year heavy-duty off-road engines is provided for 5 years or 3,000 hours of engine operation, whichever first occurs from the date of delivery of the engine to the first user. If any emission-related part on your engine is defective, the part will be repaired or replaced by Cummins Inc.. Owner's Warranty Responsibilities As the engine owner, you are responsible for the performance of the required maintenance listed in your Cummins® Owners and/or Operation and Maintenance Manual. Cummins Inc. recommends that you retain all receipts covering maintenance on your engine, but Cummins Inc. cannot deny warranty solely for the lack of receipts or for your failure to substantiate the performance of all scheduled maintenance. You are responsible for presenting your engine to a Cummins® dealer as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. As an engine owner, you should also be aware that Cummins Inc. may deny you warranty coverage if your engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications. If you have any questions regarding your warranty rights and responsibilities, you should contact Cummins® Customer Relation Department at 1-800-343-7357 or the California Air Resources Board at 9528 Telstar Avenue, El Monte, CA 91731. A warranted part which is scheduled for replacement as required maintenance is warranted up to the first schedule replacement point. Prior to the expiration of the applicable warranty, Owner must give notice of any warranted emission control failure to a Cummins® distributor, authorized dealer or other repair location approved by Cummins Inc. and deliver the engine to such facility for repair. Repair locations are listed in Cummins® United States and Canada Service Directory. Owner is responsible for incidental costs such as: communication expenses, meals, lodging incurred by Owner or employees of Owner as a result of a Warrantable Condition. Owner is responsible for "downtime" expenses, cargo damage, fines, all applicable taxes, all business costs, and other losses resulting from a Warrantable Condition.

Last Modified: 7-Apr-2016 Cummins is a trademark of Cummins Inc.

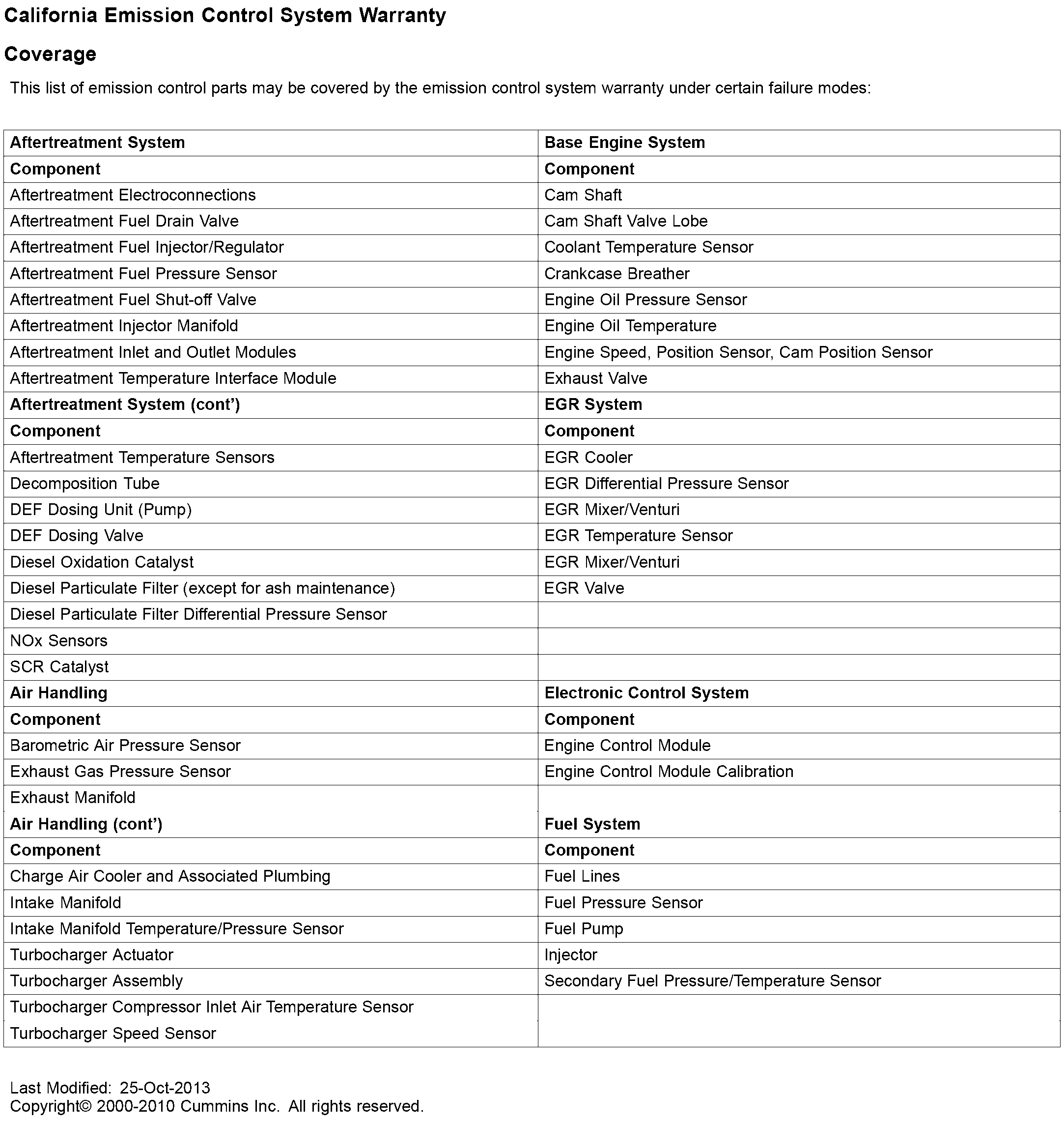

California Emission Control System Warranty

Coverage

This list of emission control parts may be covered by the emission control system warranty under certain failure modes:

Aftertreatment System	Base Engine System
Component	Component
Aftertreatment Electroconnections	Cam Shaft
Aftertreatment Fuel Drain Valve	Cam Shaft Valve Lobe
Aftertreatment Fuel Injector/Regulator	Coolant Temperature Sensor
Aftertreatment Fuel Pressure Sensor	Crankcase Breather
Aftertreatment Fuel Shut-off Valve	Engine Oil Pressure Sensor
Aftertreatment Injector Manifold	Engine Oil Temperature
Aftertreatment Inlet and Outlet Modules	Engine Speed, Position Sensor, Cam Position Sensor
Aftertreatment Temperature Interface Module	Exhaust Valve
Aftertreatment System (cont’)	EGR System
Component	Component
Aftertreatment Temperature Sensors	EGR Cooler
Decomposition Tube	EGR Differential Pressure Sensor
DEF Dosing Unit (Pump)	EGR Mixer/Venturi
DEF Dosing Valve	EGR Temperature Sensor
Diesel Oxidation Catalyst	EGR Mixer/Venturi
Diesel Particulate Filter (except for ash maintenance)	EGR Valve
Diesel Particulate Filter Differential Pressure Sensor
NOx Sensors
SCR Catalyst
Air Handling	Electronic Control System
Component	Component
Barometric Air Pressure Sensor	Engine Control Module
Exhaust Gas Pressure Sensor	Engine Control Module Calibration
Exhaust Manifold
Air Handling (cont’)	Fuel System
Component	Component
Charge Air Cooler and Associated Plumbing	Fuel Lines
Intake Manifold	Fuel Pressure Sensor
Intake Manifold Temperature/Pressure Sensor	Fuel Pump
Turbocharger Actuator	Injector
Turbocharger Assembly	Secondary Fuel Pressure/Temperature Sensor
Turbocharger Compressor Inlet Air Temperature Sensor
Turbocharger Speed Sensor

Last Modified: 25-Oct-2013 Copyright© 2000-2010 Cummins Inc. All rights reserved.

Replacement Parts Cummins recommends that any service parts used for maintenance, repair or replacement of emission control systems be new, genuine Cummins or Cummins approved rebuilt parts and assemblies, and that the engine be serviced by a Cummins distributor, authorized dealer or the repair location approved by Cummins. The owner may elect to have maintenance, replacement or repair of the emission control parts performed by a facility other than a Cummins distributor, an authorized dealer or a repair location approved by Cummins, and may elect to use parts other than new genuine Cummins or Cummins approved rebuilt parts and assemblies for such maintenance, replacement or repair; however, the cost of such service or parts will not be covered under this emission control system warranty. Cummins Responsibilities Repairs and service will be performed by any Cummins distributor, authorized dealer or other repair location approved by Cummins using new, genuine Cummins or Cummins approved rebuilt parts and assemblies. Cummins will repair any of the emission control parts found by Cummins to be defective without charge for parts or labor (including diagnosis which results in determination that there has been a failure of a warranted emission control part). Emergency Repairs In the case of an emergency where a Cummins distributor, authorized dealer, or other repair location approved by Cummins is not available, repairs may be performed by any available repair location using any replacement parts. Cummins will reimburse the Owner for expenses (including diagnosis), not to exceed the manufacturer's suggested retail price for all warranted parts replaced and labor charges based on the manufacturer's recommended time allowance for the warranty repair and the geographically appropriate hourly labor rate. A part not being available within 30 days or a repair not being complete within 30 days constitutes an emergency. Replaced parts and paid invoices must be presented at a Cummins authorized repair facility as a condition of reimbursement for emergency repairs not performed by a Cummins distributor, authorized dealer, or other repair location approved by Cummins. Warranty Limitations Cummins is not responsible for failures resulting from Owner or operator abuse or neglect, such as: operation without adequate coolant, fuel or lubricants; overfueling; overspeeding; lack of maintenance of lubricating, cooling or air intake systems; improper storage, starting, warm- up, run-in or shutdown practices. The manufacturer warrants to the ultimate purchaser and each subsequent purchaser that the engine is designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board, and that it is free from defects in materials and workmanship which cause the failure of a warranted part. Any warranted part which is not scheduled for replacement as required maintenance, or which is scheduled only for regular inspection to the effect of "repair or replace as necessary" is warranted for the warranty period. Any warranted part which is scheduled for replacement as required maintenance is warranted for the period of time prior to the first scheduled replacement point for that part. The owner will not be charged for diagnostic labor which leads to the determination that a warranted part is defective, if the diagnostic work is performed at a warranty station. The manufacturer is liable for damages to other engine components caused by the failure under warranty of any warranted part. Cummins is not responsible for failures resulting from improper repair or the use of parts which are not genuine Cummins or Cummins approved parts. These warranties, together with the express commercial warranties and emission warranty are the sole warranties of Cummins®. There are no other warranties, express or implied, or of merchantability or fitness for a particular purpose. Last Modified: 7-Apr-2016
