Adjust Rear Hitch Upper Limit

RXA0133710-UN-16JUL13

Rear Hitch Shortcut Button on Navigation Bar

RXA0143173-UN-01JUL14

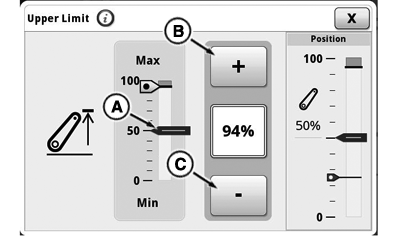

Rear Hitch Upper Limit Module

RXA0143175-UN-01JUL14

Rear Hitch Upper Limit Dial

A - Upper Limit Indicator

B - Increase Value Button

C - Decrease Value Button

D - Rear Hitch Upper Limit Dial

1. Select rear hitch upper limit module.

2. Adjust rear hitch upper limit (A) with increase (B) and decrease (C) value buttons or rear hitch upper limit dial (D).

NOTE: Changes to upper limit are immediate.

When the upper limit is the same as the hitch position, hitch follows upper limit.
