Adjust Rear Hitch Drop Rate

RXA0133710
RXA0133710-UN-16JUL13

Rear Hitch Shortcut Button on Navigation Bar

RXA0143171
RXA0143171-UN-01JUL14

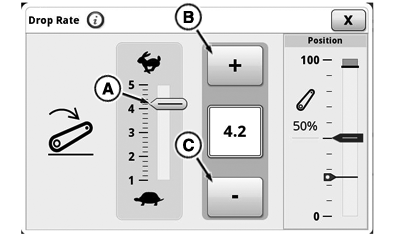

Rear Hitch Drop Rate Module

RXA0143174
RXA0143174-UN-01JUL14

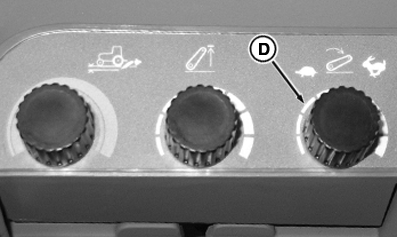

Rear Hitch Drop Rate Dial

A - Drop Rate Indicator

B - Increase Value Button

C - Decrease Value Button

D - Rear Hitch Drop Rate Dial

CAUTION: Avoid physical injury or machine damage due to excessive drop speed. Fully lowering implement should take a minimum of 2 seconds.

  1. Select rear hitch drop rate module.

  2. Adjust rear hitch drop rate (A) with increase (B) and decrease (C) value buttons or rear hitch drop rate dial (D).

    NOTE: Changes to drop rate are immediate.

GH15097,000086D-19-20160301
