Adjust Rear Hitch Raise Rate

RXA0133710-UN-16JUL13

Rear Hitch Shortcut Button on Navigation Bar

RXA0143170-UN-01JUL14

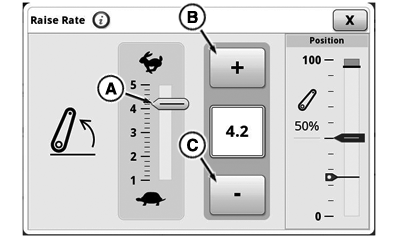

Rear Hitch Raise Rate Module

A - Rear Hitch Raise Rate Indicator

B - Increase Value Button

C - Decrease Value Button

1. Select rear hitch raise rate module.

2. Adjust rear hitch raise rate (A) with increase (B) and decrease (C) value buttons.

   NOTE: Changes to raise rate are immediate.
