Rear Hitch Slip Sensitivity

RXA0133710-UN-16JUL13

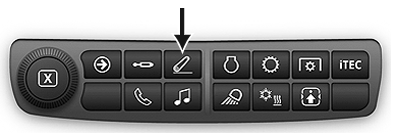

Rear Hitch Shortcut Button on Navigation Bar

RXA0143178-UN-03JUL14

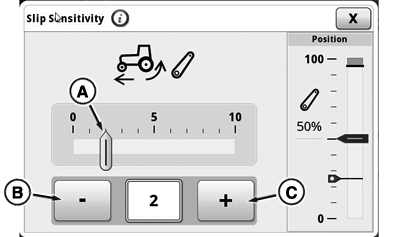

Rear Hitch Slip Sensitivity Module

A - Slip Sensitivity Indicator

B - Decrease Value Button

C - Increase Value Button

NOTE: Hitch slip operates only in tractors equipped with radar, and load depth control set to draft control mode (see Using Draft Control in this section of this Operator’s Manual).

Operate hitch with draft sensing only, or with draft sensing and hitch slip. Hitch slip adjustment is independent from draft response.

Response Setting Guidelines1
Chisel Plow	2—4
Subsoiler	5—7
Moldboard Plow	7—9
V-Ripper	8—10

1. Select rear hitch slip sensitivity module.

2. Adjust slip sensitivity (A) with decrease (B) and increase (C) value buttons. Higher values provide more/quicker response to slip variation. Lower values provide less/slower response to slip variation.

NOTE: Changes to slip sensitivity are immediate.

Changing rear hitch slip response can affect operation when wheel slip is above 10%.

Rear hitch slip response automatically returns to zero during transport [speed above 20 km/h (12.4 mph)].
