Float Operation

Implements that fully rest on gauge wheels for depth control require hitch to float following ground contour.

Put hitch control lever in float position.

RXA0142717
RXA0142717-UN-01JUL14

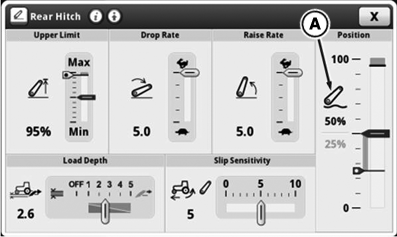

Rear Hitch Module in Float Position

A - Float Icon

Lift links can be adjusted for lateral float. See Adjust Lateral Float in this section of this Operator’s Manual.
