Rear Hitch Lock

CAUTION: To prevent possible injury and equipment damage, lock hitch before transporting.

RXA0143181-UN-03JUL14

RXA0143182-UN-03JUL14

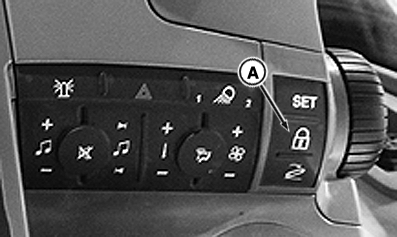

A - Lock Button

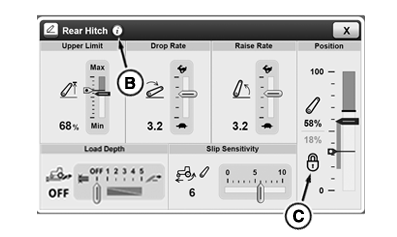

B - Advanced Settings Icon

C - Lock Indicator

Hitch Lock

Before transport, or when hitch-mounted implement is not in use, engage rear hitch lock.

1. Raise hitch with hitch control lever or hitch depth adjust dial.

2. Press lock button (A).

When hitch lock indicator (C) is visible, hitch does not respond to hitch depth adjust dial, and hitch control lever cannot lower hitch.

Hitch control lever can raise hitch back up to locked position with lever held in detent position.

If hitch leaks down while tractor is stopped, hitch returns to locked height when tractor begins moving.

To unlock hitch, press lock button (A) again.
