CommandARM™ Light Buttons

RXA0142355-UN-10JUN14

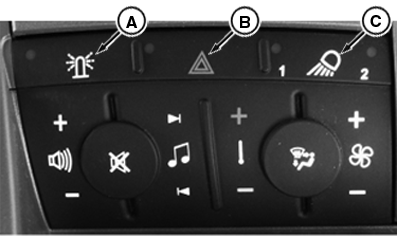

CommandARM™ Buttons

A - Beacon Lights

B - Hazard Lights

C - Field Lights 1 and 2 Toggle Button

NOTE: Field Lights must be adjusted using Generation 4 CommandCenter™ display.

Operator can control beacon (A), hazard (B), and field lights (C) from the CommandARM™ rather than from display screens. When lights are on, an LED light will be lit up. When off, the LED light will be dark. Field Lights button (C) has two LED lights one for Field Lights 1 and one for Field Lights 2. Appropriate LED light will illuminate when selected.
