Shortcut Buttons

Generation 4 CommandCenter™ navigation bar shortcut buttons allow direct access to specific applications.

RXA0132501-UN-15MAY13

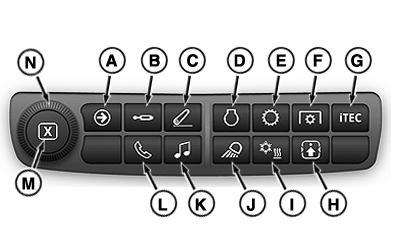

Generation 4 CommandCenter™ Navigation Bar

A - Next Run Page

B - SCV

C - Rear Hitch

D - Engine

E - Transmission

F - PTO

G - iTEC™

H - Controls Setup

I - HVAC

J - Lights

K - Audio

L - Phone

M - Close Button

N - Adjustment Dial

NOTE: If CommandCenter™ is not responding, reset by holding down Next Run Page button (A) and button below (no icon) for five seconds. If resetting CommandCenter™ does not resolve issue, contact John Deere™ dealer.
