Change Pages and Values

RXA0133414-UN-27JUN13

Input Fields

RXA0130123-UN-23APR13

Menu

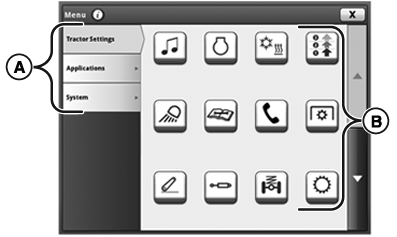

• A—Section Tab: To change to different section topic, click desired section tab.
• B—Icons: Select to open application.

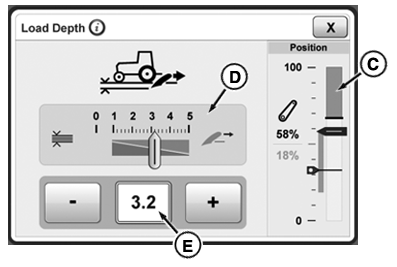

• C—Bar Graph: To change value, use increase (+) or decrease (-) buttons.
• D—Slider Bar: To change value, select slider bar module and use increase (+) or decrease (-) button.
• E—Input Box: Use increase (+) or decrease (-) buttons to adjust value. To enter new values or text, select desired input box.

NOTE: When changing values using adjustment dial, increasing speed of adjustment dial rotation increases speed of value changes.

If a large range of values is available a numeric keypad appears, allowing direct input of desired value.
