Navigate to Equipment Manager

RXA0135344-UN-30AUG13

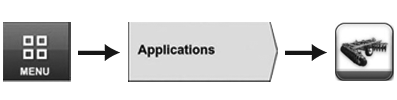

Menu → Applications Tab → Equipment Manager Icon

RXA0148518-UN-25JUN15

RXA0148519-UN-25JUN15

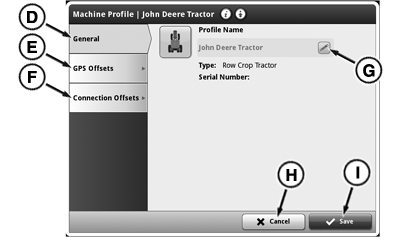

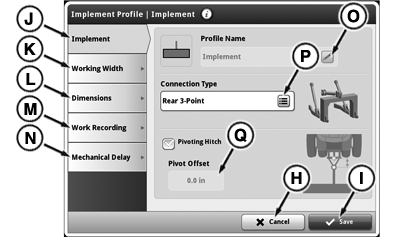

Machine Profile Page

RXA0148517-UN-25JUN15

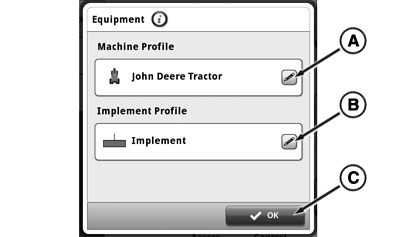

Implement Profile Page

A - Machine Profile Selection Button

B - Implement Profile Selection Button

C - OK Button

D - General Tab

E - GPS Offsets Tab

F - Connection Offsets Tab

G - Machine Profile Name Input Field

H - Cancel Button

I - Save Button

J - Implement Tab

K - Working Width Tab

L - Dimensions Tab

M - Work Recording Tab

N - Mechanical Delay Tab

O - Implement Profile Name Input Field

P - Connection Type List

Q - Pivot Offset Input Field

1. Select Menu.

2. Select Applications tab.

3. Select Equipment Manager icon.

4. Press Machine Profile (A) or Implement Profile (B) Selection button.
