Automation Status

RXA0135014
RXA0135014-UN-12AUG13

Menu → Applications Tab → Automation Status Icon

RXA0135016
RXA0135016-UN-12AUG13

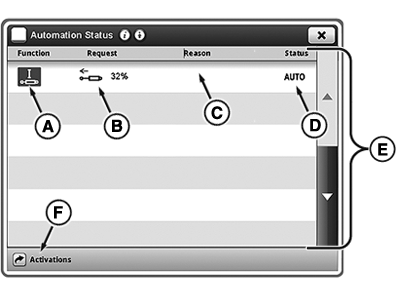

Automation Status Page

A - Function

B - Request

C - Reason

D - Status

E - Scroll Bar

F - Activations button

Automation Status allows control of various tractor functions. Automation Status displays which tractor functions are being controlled and their current status.

SCV Function Example: SCV status set to AUTO. Implement actively controls SCV 1. Implement requests SCV flow to be set at 32% in extend direction.

  1. Select Menu.

  2. Select Applications tab.

  3. Select Automation Status icon.

Press Activations button (F) to navigate to Software Manager application.

KT81203,00000A2-19-20140320
