Exhaust Filter System Overview—Final Tier 4 and Stage IV Engines

RXA0133711
RXA0133711-UN-16JUL13

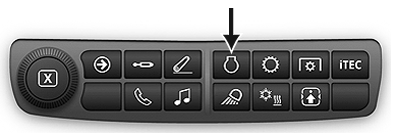

Engine Shortcut Button on Navigation Bar

RXA0147937
RXA0147937-UN-13APR15

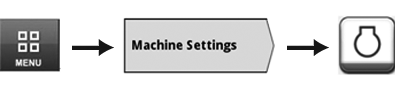

Menu → Machine Settings Tab → Engine Icon

RXA0153765
RXA0153765-UN-02SEP16

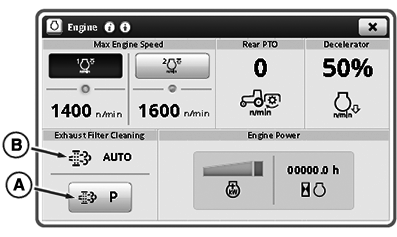

Engine Page

RXA0129965
RXA0129965-UN-07DEC12

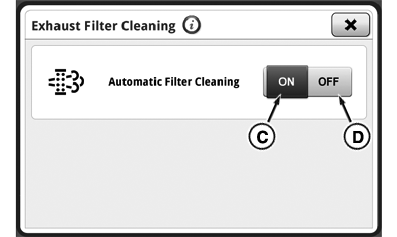

Exhaust Filter Cleaning

A - Parked Exhaust Filter Cleaning Mode

B - AUTO Exhaust Cleaning Mode

C - Exhaust Filter Cleaning AUTO Mode Toggle

D - Exhaust Filter Cleaning Disabled Mode Toggle

Machine is equipped with emission compliant engine which cleans and filters exhaust gas. Under normal machine operation and with system in AUTO mode, system requires minimal operator interaction.

To avoid buildup of diesel particulates or soot in exhaust filter system:

  • Utilize AUTO Exhaust Filter Cleaning mode.
  • Avoid unnecessary idling.
  • Use proper engine oil (see Diesel Engine Oil in Fuels, Lubricants, and Coolants Section of this Operator’s Manual).
  • Use only ultra low sulfur fuel (see Diesel Engine Oil in Fuels, Lubricants, and Coolants Section of this Operator’s Manual).

Exhaust Filter System Cleaning

IMPORTANT: Use disabled mode (D) when temporarily connected to an indoor ducted exhaust system for diagnostic and repair activities.

Exhaust Filter Cleaning will automatically reset back to AUTO mode after every key cycle.

There are two exhaust filter system modes: AUTO (C) and Disabled (D).

Parked Exhaust Filter Cleaning mode (A) may be active or inactive (grayed out) depending on exhaust filter restriction level (see Parked Exhaust Filter Cleaning later in this section of this Operator’s Manual).

To access engine main page, use Engine Shortcut Button on Navigation Bar or follow alternative path:

  1. Select Menu.
  2. Select Machine Settings tab.
  3. Select Engine icon.
  4. Select AUTO Exhaust Cleaning Mode (B).
  5. Select Exhaust Filter Cleaning AUTO Mode toggle (C) to allow exhaust filter system to perform cleaning as required

    IMPORTANT: Avoid Disabled mode unless absolutely necessary. Repeated disabling or ignoring prompts to perform manual / parked cleaning procedure will cause additional engine power limitation and can eventually lead to required dealer service.

  6. Select Exhaust Filter Cleaning Disabled Mode toggle (D) to disable exhaust filter system.

KT81203,00000C1-19-20160902
