Connect AutoTrac™ Assisted Steering System

RXA0153453-UN-18AUG16

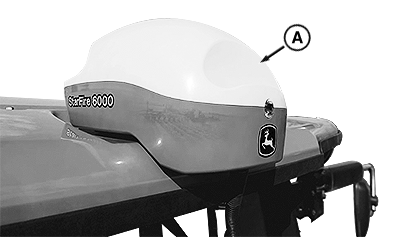

StarFire™ Receiver

RXA0133300-UN-08JUL13

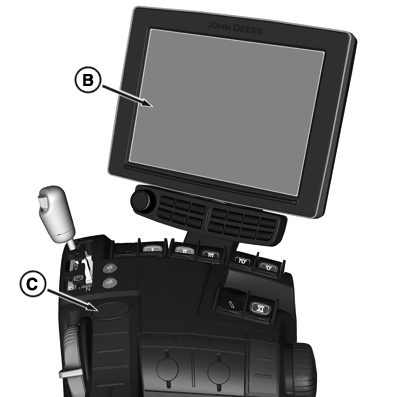

Generation 4 CommandCenter™ Display

A - StarFire™ Position Receiver

B - Generation 4 CommandCenter™ Display

C - AutoTrac™ Resume Button

Refer to Generation 4 Applications Operator's Manual for detailed instructions.

• AutoTrac™ system utilizes StarFire™ position receiver (A) and Generation 4 CommandCenter™ Display (B) to assist operator in steering tractor. Other displays are used as well. See Multiple displays in CommandCenter™ section of this Operator’s Manual.
• Operator must take manual control at end of each pass and when field obstacles are encountered. Regain steering control is by turning steering wheel. After turn is made, press AutoTrac™ Resume button (C) to engage AutoTrac™.

NOTE: See your John Deere™ dealer for compatible adapter harnesses.
