Change Differential Lock Disengagement Steering Angle

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0130326-UN-11JAN13

Advanced Settings Icon → Settings Tab

RXA0137847-UN-13DEC13

Differential Lock Steering Angle

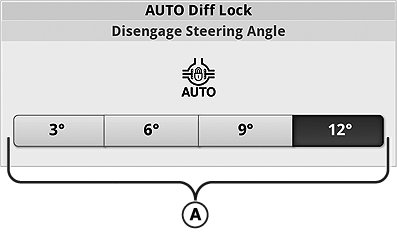

A - Steering Angle Toggle Bar

When using Auto lock feature of differential lock system, higher disengage steering angles require operator to turn steering wheel further before differential lock disengages. Use in high slip field conditions that require large steering corrections to maintain desired path. Differential lock remains engaged while making steering corrections across field, but automatically disengages on headland turns.

Lower disengage steering angles allow differential lock to disengage sooner (less steering wheel movement), which is useful in high traction (e.g. paved surface) conditions. Differential lock remains engaged during straight-line work, while minimizing tractor jerk when disengaged or reengaged.

Steering angle is preset at 4°. Use Transmission Advanced Settings to adjust steering angle to disengage differential lock.

1. Select Transmission Shortcut Button on Navigation Bar.
2. Select Advanced Settings icon.
3. Select Settings tab.
4. Select desired steering angle to Disengage Steering differential lock using Steering Angle Toggle Bar (A).
