Select Radio Receiver Wave Band

RXA0141571-UN-13MAY14

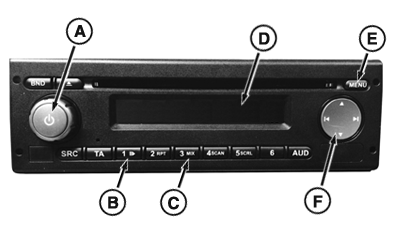

Radio Faceplate

A - ON/OFF Button

B - Station Button 1

C - Station Button 3

D - Display

E - Menu Button

F - Multi-Function Rocker Switch

Radio stations cannot be received if correct country-specific wave band is not selected for radio receiver. Select correct wave band:

1. Move key switch into ACC position.
2. Turn OFF radio with ON/OFF button (A).
3. Press and hold ON/OFF button, station button 1 (B) and station button 3 (C) until SETUP appears on display (D).
4. Press menu button (E) until current wave band (e.g. EUROPE, NAFTA, etc) is shown on display. Countries and their associated wave bands are shown in chart.
5. If wave band shown on display is not correct, press multi-function rocker switch (F) left or right until correct wave band is shown. NOTE: If radio will not store selected wave band, radio may be CommandCenter™ controlled. See your John Deere™ dealer.

6. Without changing selected wave band, turn radio OFF.

Wave Band		Country
EUROPE	Austria Belgium Bulgaria Croatia Dutch Denmark England Estonia Finland	France Hungary Italian Lithuania Luxemburg Latvia Netherlands Poland Portugal	Romanian Serbia Slovakia Spain Sweden Switzerland Turkey Ukraine
NAFTA	Canada Dominican Republic	Mexico United States (USA)
SOTHAMRCA	Argentina Bolivia	Brazil Nicaragua	Uruguay Venezuela
MESTAFRC	Armenia Ethiopian Israel	Guyana Kazakhstan Oman	Russia South Africa Zambia
APAC	China	Japan	Korea
AUSTRLNZ	Australian	New Zealand
TAIWAN	Taiwan
PHILIPIN	Philippines
